smallest peltier air cooler thermoelectric air conditioner
Product Description
Thermoelectric air conditioner operate by the Peltier effect (which also goes by the more general name thermoelectric effect). The device has two sides, and when DC current flows through the device, it brings heat from one side to the other, so that one side gets cooler while the other gets hotter. The "hot" side is attached to a heat sink so that it remains at ambient temperature, while the cool side goes below room temperature. In some applications, multiple coolers can be cascaded together for lower temperature.

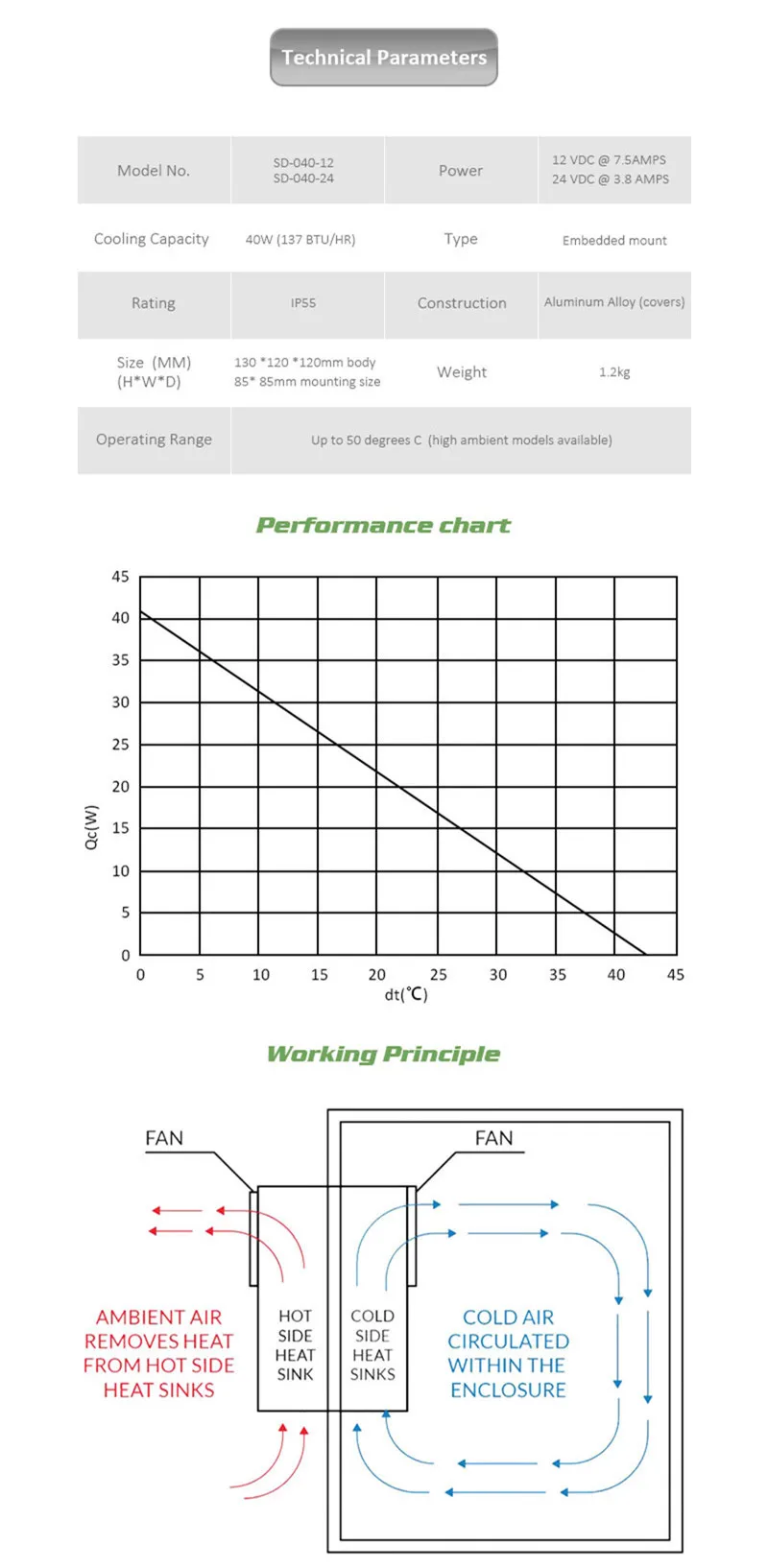

Technical data

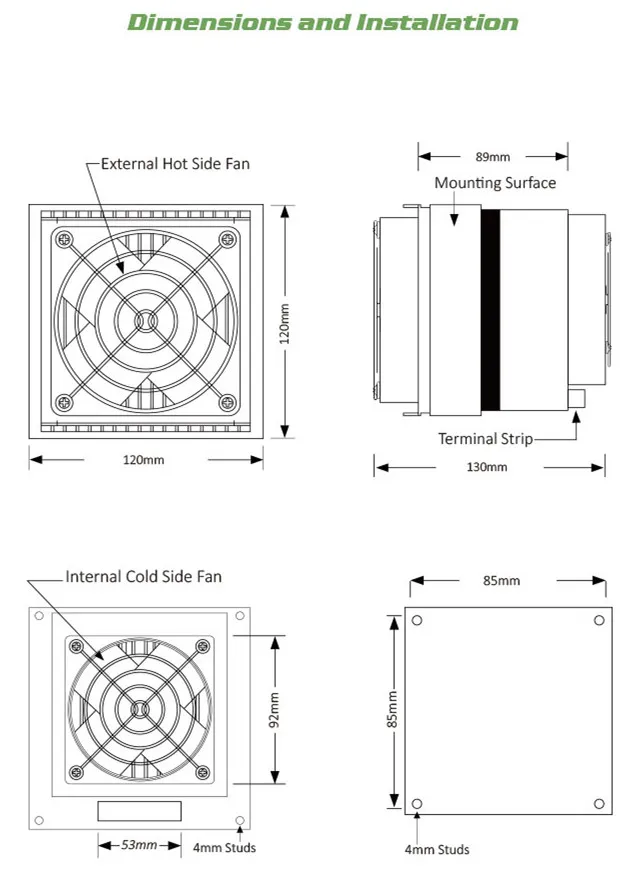

Installation
1. The hot side of the thermoelectric cooler is mounted on the outside of the box
2. Use four M4 screws with flat washers to lock and fix the air cooler;
3. Products need to be installed vertically(Heat sink fin is vertical;
4. Avoid to external shock and damage.
Fan blades and heat sink need to be kept clean to reduce the risk of heatsink overheating and cooling power decrease.
Application
Thermoelectric cooler can be widely developed for enclosed area climate control such as telecom outdoor cabinet, battery cabinet, industry control cabinet, precision instrument, telecommunication parts, medicine equipment, military equipment, etc.
Company Information
Zhuzhou Sanda Electron Manufacturing Co.,Ltd is a modernized high-tech enterprise engages in the research, produce and supplier of intelligent instruments for electric power grid and switch cabinet.
We design,produce and sell:
1. Multi-function electric meter, multi-function network meter, multi-function harmonic meter, digital ammeter, digital voltmeter.
2.Switchgear intelligent operating devices, switch state indicator.
3.Cabinet air conditioners, thermoelectric cooling units, TEC air conditioners and dehumidifiers.
4.Temperature and humidity controller, dry-type transformer temperature and humidity controller,dry-type cooling fans.
Widely use in electricity facilities worldwide:
• Oil & chemical, mechanical
• Construction and are applicable for terminal body.
• High voltage switch cabinet, substation.
• Low voltage box
• Low-voltage AC power distributing cabinet
• Low voltage cabinet.
• Oil & chemical, mechanical
• Construction and are applicable for terminal body.
• High voltage switch cabinet, substation.
• Low voltage box
• Low-voltage AC power distributing cabinet
• Low voltage cabinet.
Our representative client
FAQ
1. How do we know which model is suitable for us?
a. Confirm the ambient temperature (Th);
b. Confirm the required temperature of the cooling space or objects (Tc);
c. Confirm the application’s heat load power (Q, the heat need to be removed or lowered);
d. Determine the required cooling capacity (Qc, considering heat loss, it is recommended Qc=1.5*Q);
e. Find out TE products from the catalog, whose maximum heat pumping capacity (Qmax) matches with the Qc worked out by step #4 (±5W), and then refer to the expected Current and Voltage to pick out a suitable product. If the single product could not meet the requirement, you can also use series or parallel connect multiple products to get higher performance, the quantity = Qc / Qmax (Single products).
2. What service we can support to our customers?
Our products can be customized according to special requirement from customers, normally, we offer professional thermoelectric solutions within 24 hours.
3. Besides MOQ, what we can do for trail order quantity?
Our MOQ is 10PCS, however, we would like to support our customer even 1 PC sample for testing.
4. How long is the delivery time for samples and bulk orders?
Generally within 3 working days for samples, 5-15 working days for bulk orders after receiving deposit.
5. What is the packing method?
b. Confirm the required temperature of the cooling space or objects (Tc);
c. Confirm the application’s heat load power (Q, the heat need to be removed or lowered);
d. Determine the required cooling capacity (Qc, considering heat loss, it is recommended Qc=1.5*Q);
e. Find out TE products from the catalog, whose maximum heat pumping capacity (Qmax) matches with the Qc worked out by step #4 (±5W), and then refer to the expected Current and Voltage to pick out a suitable product. If the single product could not meet the requirement, you can also use series or parallel connect multiple products to get higher performance, the quantity = Qc / Qmax (Single products).
2. What service we can support to our customers?
Our products can be customized according to special requirement from customers, normally, we offer professional thermoelectric solutions within 24 hours.
3. Besides MOQ, what we can do for trail order quantity?
Our MOQ is 10PCS, however, we would like to support our customer even 1 PC sample for testing.
4. How long is the delivery time for samples and bulk orders?
Generally within 3 working days for samples, 5-15 working days for bulk orders after receiving deposit.
5. What is the packing method?
Loaded into trays(hard pearl cotton) and packed into cardboard boxes.
6. How to delivery?
Samples delivered by express such as DHL, UPS, FedEx, TNT , EMS,SF express, we will use the way you prefer.
Bulk orders delivered by air cargo or shipping.
7. What is the payment terms?
We accept Bank Transfer, Paypal, Western Union, and Ecrow terms, the freight, insurance and both sides bank fee are borne by the buyer.
8. Where is thermoelectric cooler applied?
Thermoelectric cooler can be widely developed for enclosed area climate control such as telecom outdoor cabinet, battery cabinet, industry control cabinet, precision instrument, telecommunication parts, medicine equipment, military equipment, etc.
Samples delivered by express such as DHL, UPS, FedEx, TNT , EMS,SF express, we will use the way you prefer.
Bulk orders delivered by air cargo or shipping.
7. What is the payment terms?
We accept Bank Transfer, Paypal, Western Union, and Ecrow terms, the freight, insurance and both sides bank fee are borne by the buyer.
8. Where is thermoelectric cooler applied?
Thermoelectric cooler can be widely developed for enclosed area climate control such as telecom outdoor cabinet, battery cabinet, industry control cabinet, precision instrument, telecommunication parts, medicine equipment, military equipment, etc.
